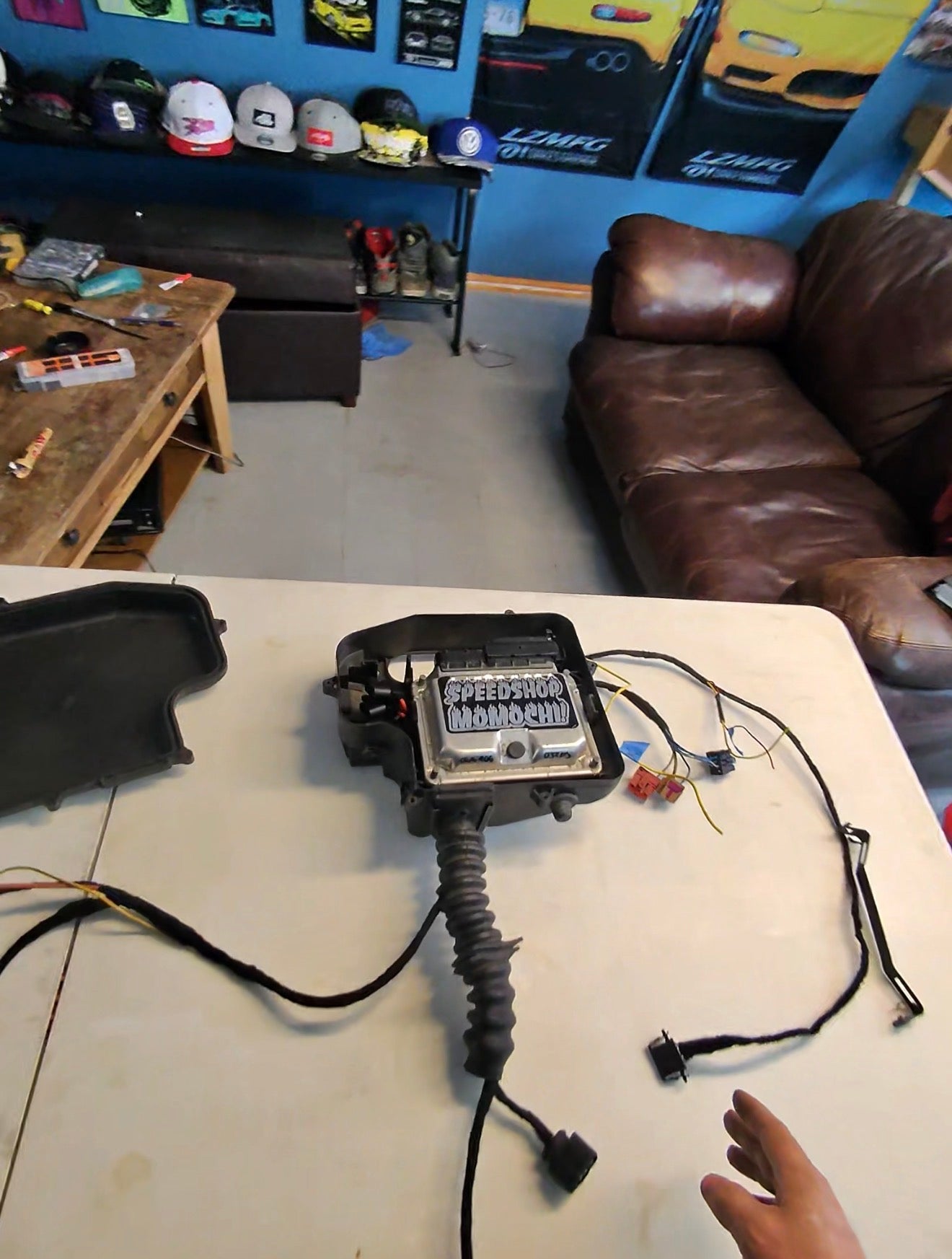

B5 awp conversion harness

Introducing our b5 awp swap harness. Made to simplify the process of wideband and dbw swapping your early b5 a4 without having to change the chassis harness.  We offer them for pre facelift aeb, facelift aeb, or atw. Just let us know the info for your car before or after ordering. The harness has its own fuses and relays. You will simply just need to plug it all in, hook up switched power to the 75x post under the drivers side of your dash, and ground. They are all made to run with stock wideband me7.5 ecus and factory or aftermarket engine side harnesses. this works with any golf, Jetta, beetle, or tt  1.8t engine sensor side harness. Simply plug your stock engine side harness into that side of the ecu, and our new power side into the other ecu plug. must be run with an immo defeated wideband 1.8t ecu. we do offer these as well.  You will also need a drive by wire pedal and pedal bracket. The bracket is the same as a b5.5 Passat or b6 Audi, so plenty of options in the junkyards, part outs, or eBay.  At this time we are requiring your old engine harness to be shipped to us to use some of the plugs that we can no longer get, as well as the factory firewall plugs at the end of the engine harness that we use to tie into the chassis for your cluster and oem obd port to be used. this side of the harness also includes the plug for the maf sensor, and the o2 sensors. we do as standard do not have a rear o2 sensor wired in. if you’d like one, please add that to your notes. sai and evap plugs are also not included..  We offer all sorts of tuning for the 1.8t from stock engine swap files to big turbo built engine.  All tunes include immo defeat, launch control, antilag/no lift shift, full deletes, and optimized power adders for your setup. ****off-road use only**** All harnesses are made to order. please allow 1-2 weeks for assembly

video explanation of our harness can be found on our Instagram @speedshopmomochi there is also a link at the bottom of our main page.

list of sensors needed for swap

Both knock sensors-030905377C x 2

Cam sensor rotor-06B905234A

Crank sensor-06A906433L

Maf sensor-06A906461L

Map sensor-03G906051D

Front o2 sensor-1K0998262D

you will also need a Bosch drive by wire throttle body from any mk4, beetle, tt b5 or b6 that has dbw.
